PCB Connector-PlugLKPG-381

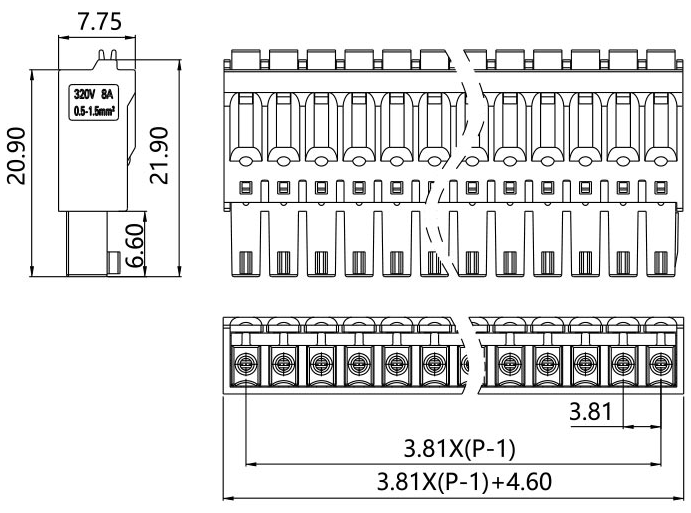

LKPG-381

3.81mm,02p~24p

DownloadPDF

Basic Information

Category	PCB Connector-Plug
Model	LKPG-381
Pitch	3.81mm
Poles	02P~24P
Plug-in direction	Plug-in direction parallel to the conductor axis
Color	Green

Related products

Jointlean provides samples for user experience

LKPG-381

We chat关闭

Pitch[mm]	3.81
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	I
Surge voltagecategory/contamination class	III/3 III/2 II/2
Rated voltage[V]	160 160 320
Rated surge voltage[kV]	2.5 2.5 2.5
Rated current/Cross section[A]/[mm²]	8/1.5
Maximum load current/Cross section[A]/[mm²]	8/1.5
Capacity connection
Rigid/flexible conductor/conductor sizes[mm²]/[mm²]/AWG	0.2-1.5/0.2-1.5/24-16
Flexible conductors with cold pressing tip with/without plastic sleeve	0.2-0.75/0.2-1.5
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm²]	-
Stranded with ferrule without/with plastic sleeve[mm²]	-
Stranded with ferrule with plastic sleeve[mm²]	-
Stripping length[mm]	10
Internal cylindrical gauge(IEC 60 947-1)	A1
Thread	-
Torque[Nm]	-
Insulating material	PBT+GF
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	-/-/-
CSA:[V]/[A]/AWG	-/-/-
