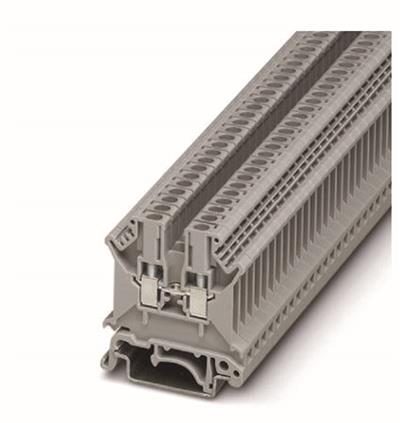

Universal terminal block JK 1.5N
| Category | Universal terminal block JKseries |
| Model | JK 10N |
| Thickness | 4.2mm |
| Width | 42.5mm |
| Terminal size | |
| Thickness/width/Endplate thickness/Endplate thickness[mm] | 10.2/42.5/1.8 |
| Height(TS 35:7.5/TS 35:15/TS 32)[mm] | 47/54.5/52 |
| Technical data in accordance with IEC/DIN and VDE | |
| Nominal current/Rated voltage[A]/[V] | 76/800 |
| Cross section(Rigid/flexible)[mm²] | 0.5-16/0.5-10 |
| Maximum cross section of wire that can be connected when using Edge ｉｎｓｅｒｔ bridgeware(Rigid/flexible)[mm²] | 16/10 |
| Rated pulse withstand voltage/contamination class[kV]/- | 8/3 |
| Overvoltage level/Insulation materialgroup | III/I |
| Capacity connection | |
| Flexible conductor with bare tubular /tubular pre-insulated tip[mm²] | 0.5-10/0.5-6 |
| Multiple connection（2 conductors with same cross section） | |
| Rigid/flexible conductor[mm²] | 0.5-4/0.5-4 |
| Flexible conductor with bare tubular tip[mm²] | 0.5-2.5 |
| Flexible conductor with tubular pre-insulated TWIN ferrule[mm²] | 0.5-6 |
| Stripping length[mm] | 10 |
| Internal cylindrical gauge(IEC 60 947-1) | B6 |
| Thread | M4 |
| Torque[Nm] | 1.5-1.8 |
| Insulation material | PA |
| Inflammability class in acc.with UL 94 | V0 |
| Approva ldata(UL/CUL and CSA) | |
| Rated voltage/Nominal current/conductor sizes UL:[V]/[A]/AWG | 600/65/24-6 |
| CSA/CUL:[V]/[A]/AWG | 600/65/24-6 |
Jointlean provides samples for user experience
JK 10N
