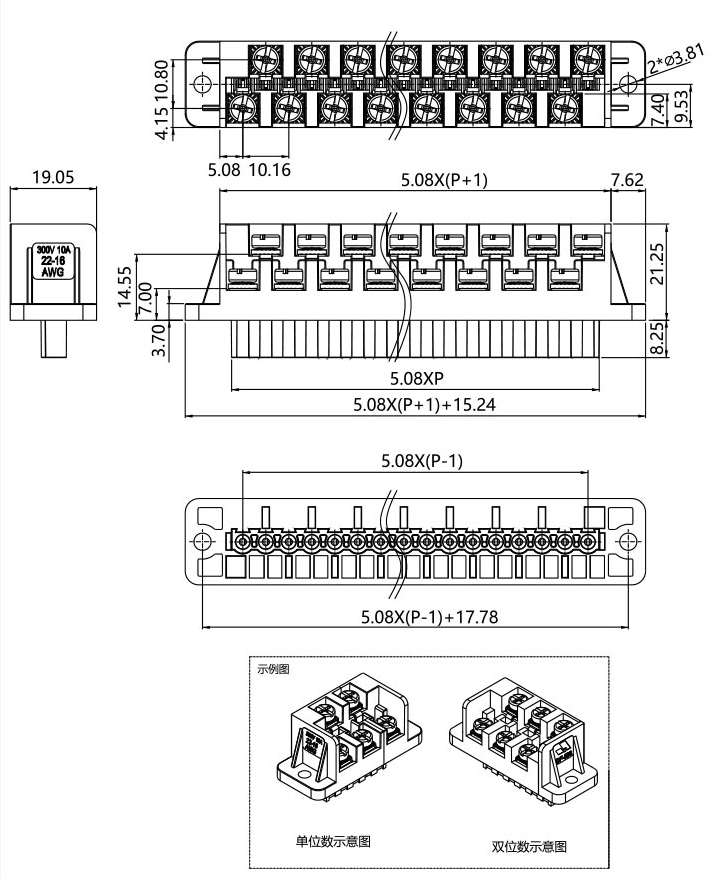

PCB Connector-PlugTDF-508

TDF-508

5.08mm

DownloadPDF

Basic Information

Approval
Category	PCB Connector-Plug
Model	TDF-508
Pitch	5.08mm
Poles	08P~18P
Plug-in direction	Plug-in direction vertical to the conductor axis
Color	Green

Related products

Jointlean provides samples for user experience

TDF-508

We chat关闭

Pitch[mm]	5.08
Technical data in accordance with IEC/DIN and VDE
Insulation materialgroup	I
Surge voltagecategory/contamination class	III/3
Rated voltage[V]	300
Rated surge voltage[kV]	5
Rated current/Cross section[A]/[mm²]	10/2.5
Maximum load current/Cross section[A]/[mm²]	10/2.5
Capacity connection
Rigid/flexible conductor/conductor sizes[mm²]/[mm²]/AWG	0.5-2.5/0.5-2.5
Flexible conductors with cold pressing tip with/without plastic sleeve	0.5-2.5/0.5-2.5
Multiple connection（2 conductors with same cross section）
Rigid/flexible conductor[mm²]	0.5-2.5/0.5-2.5
Stranded with ferrule without/with plastic sleeve[mm²]	0.5-2.5
Stranded with ferrule with plastic sleeve[mm²]	0.5-2.5
Stripping length[mm]	/
Internal cylindrical gauge(IEC 60 947-1)	/
Thread	M3.5
Torque[Nm]	0.8
Insulating material	PA+GF
Inflammability class in acc.with UL 94	V0
Approva ldata(UL/CUL and CSA)
Rated voltage/Rated current/conductor sizes UL/CUL:[V]/[A]/AWG	/
CSA:[V]/[A]/AWG	/
